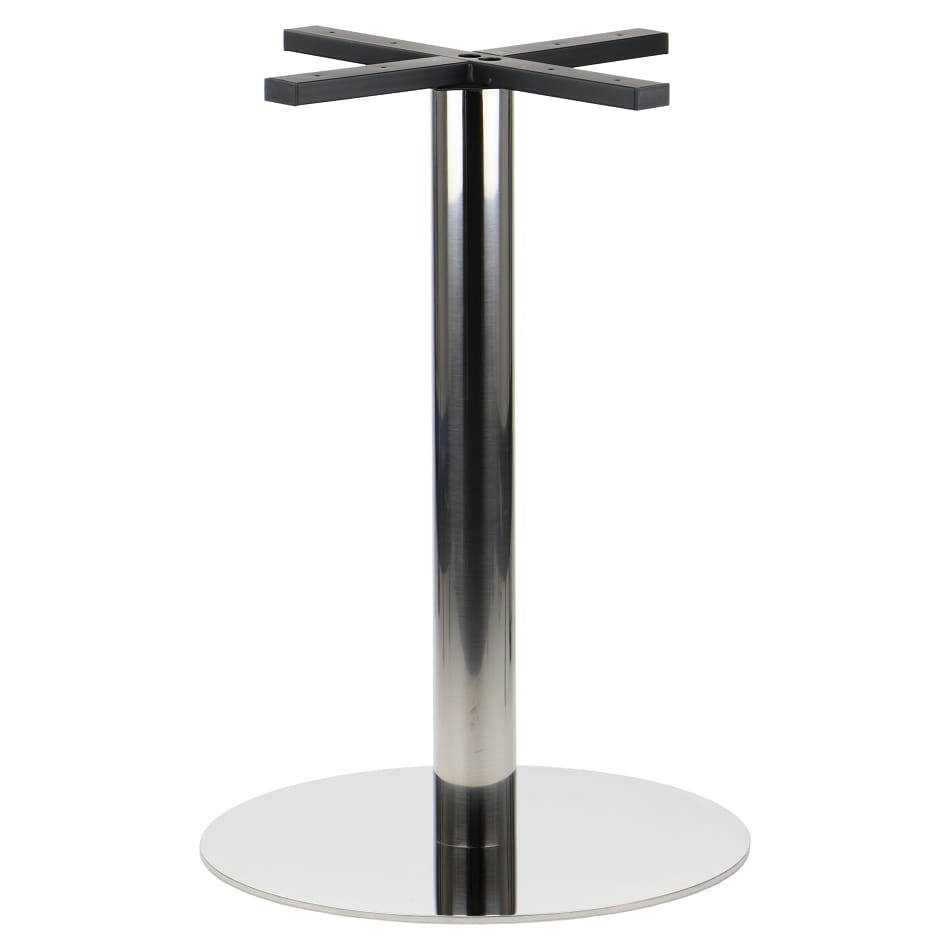

Table base SH-3001-6/P, fi 49,5 cm, polished stainless steel (table leg)
Description
TABLE BASE
SH-3001-6/P

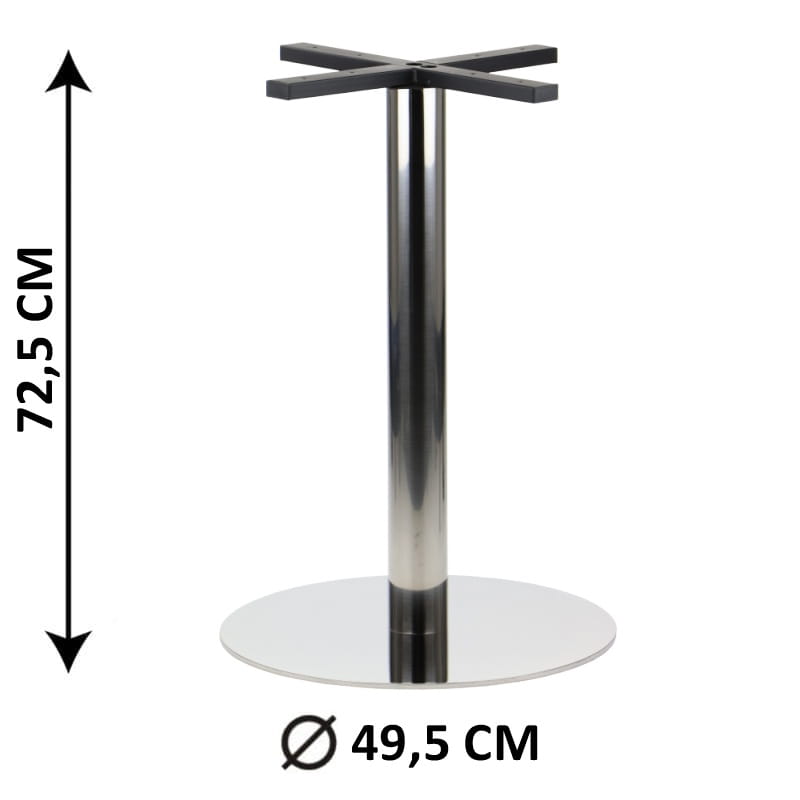

fi 49,5 cm, height 72,5 cm
BASIC FEATURES
- bottom plate dimension fi 49,5 cm
- bottom plate steel thickness 7 mm, covered with polished stainless steel
- leg made of polished stainless steel, diameter 75 mm, wall thickness 1,2 mm
- mounting plate made of steel 4x2 cm profiles, dimension 45x45 cm
- mouting plate with 8 holes, 5 mm diameter

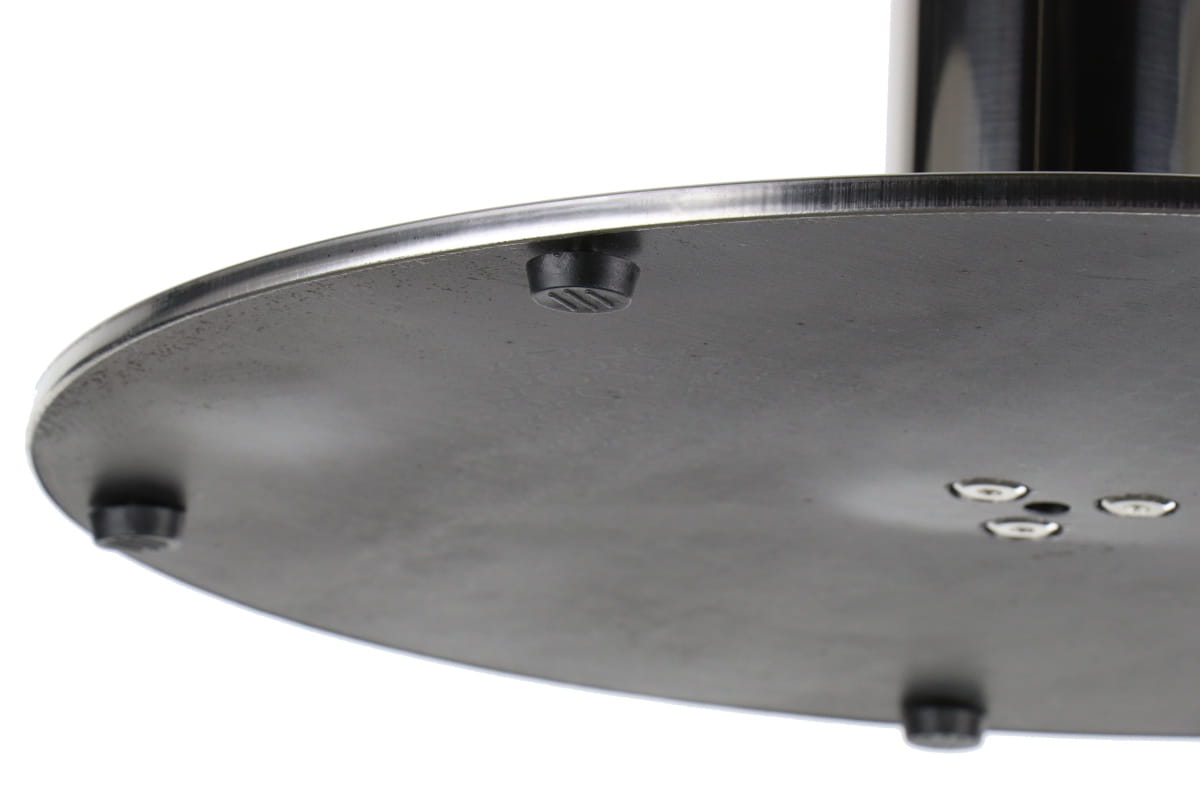

- adjustable feet
- screwed base, delivered in parts
- stainless steel, type 201 - for dry indoor use
- weight: 13,5 kg
DIMENSIONS
DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC
MOUNTING PLATE

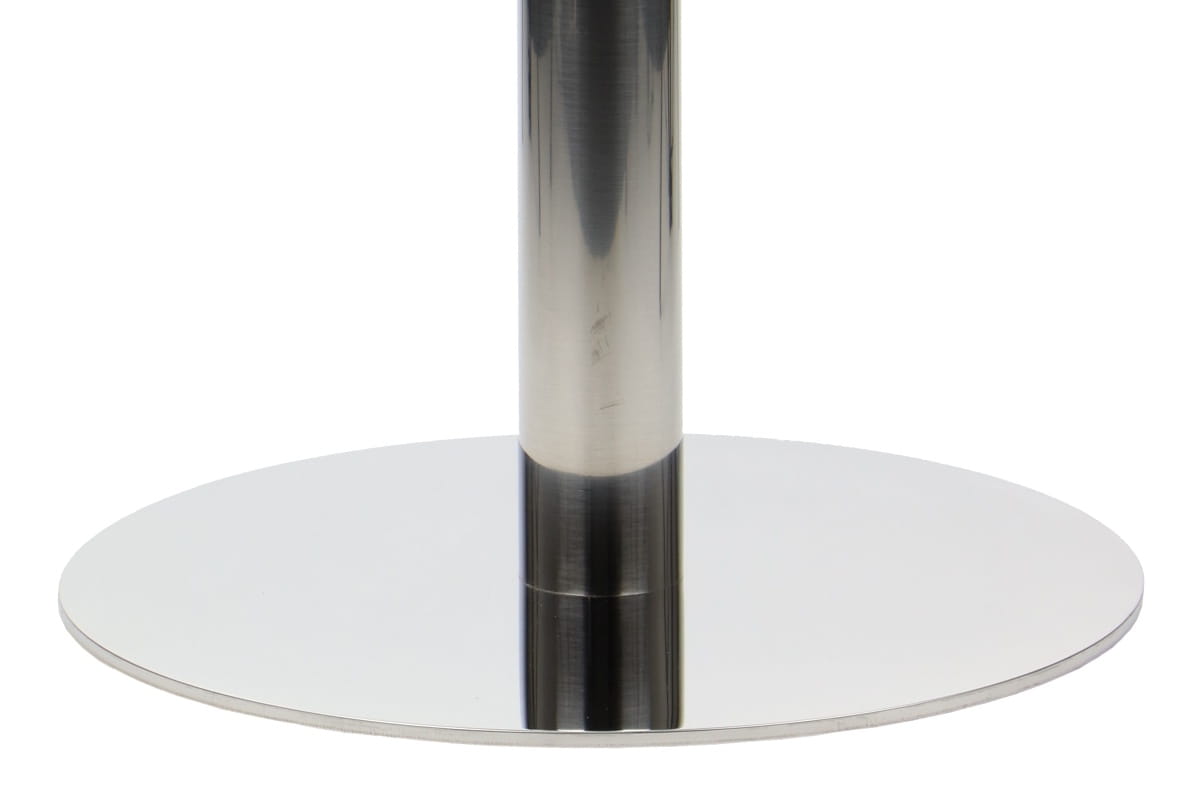

BOTTOM PLATE
Technical data
Warranty | product has a seller warranty. |
Height | from 68 to 74 |
Finish | polished stainless steel |
Bottom plate - shape | round |
Bottom plate - dimensions | about 50 cm |
