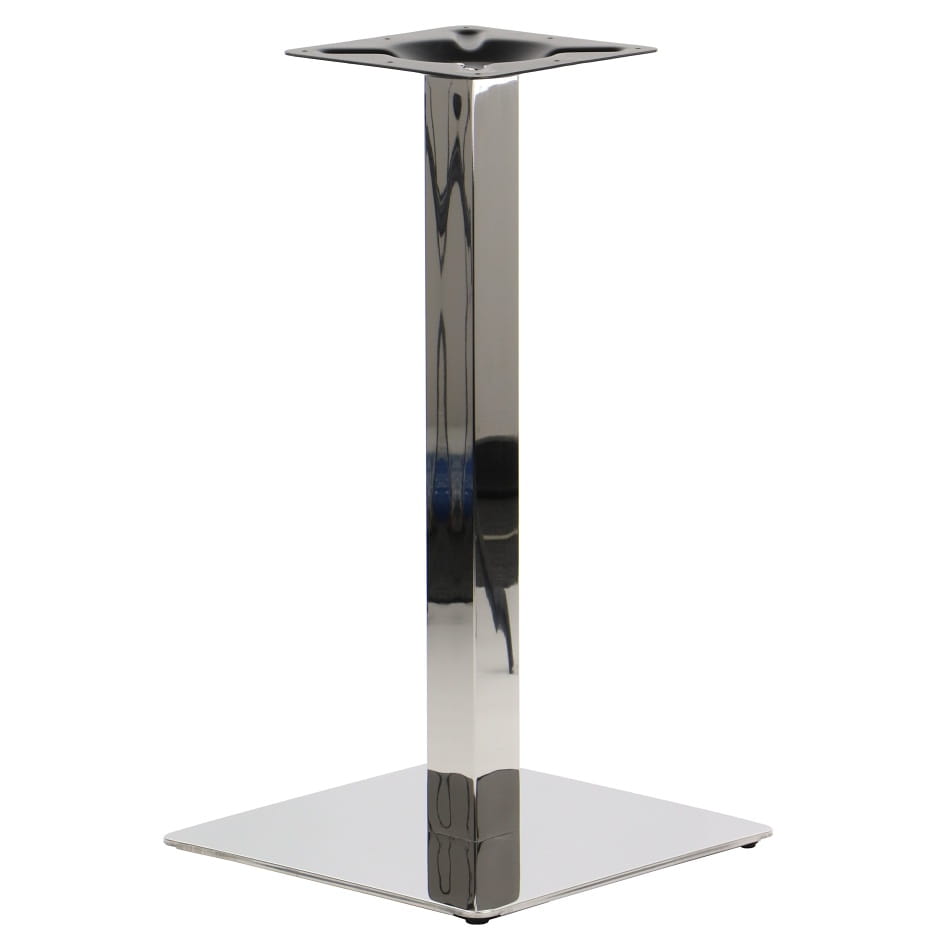

Table base SH-3002-1/60/P, 40x40 cm, polished stainless steel (table leg)
Description
TABLE BASE
SH-3002-1/60/P
40x40 cm, height 72 cm
BASIC FEATURES
- bottom plate dimension 40x40 cm
- bottom plate steel thickness 7 mm, covered with polished stainless steel
- leg made of polished stainless steel, cross-section 60x60, wall thickness 1,2 mm
- mounting plate made of 25x25x0,3 cm pressed steel sheet
- mouting plate with 8 holes, 5 mm diameter

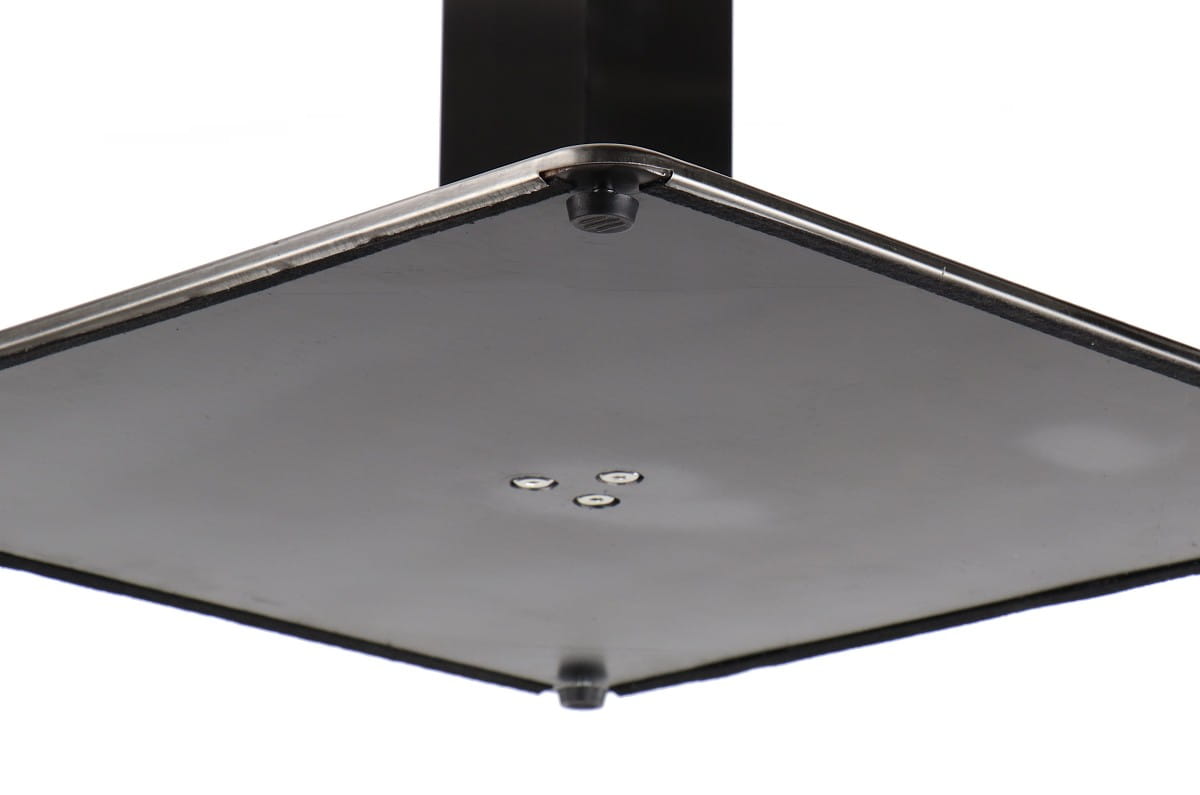

- adjustable feet
- screwed base, delivered in parts
- stainless steel, type 201 - for dry indoor use
- weight: 12,5 kg

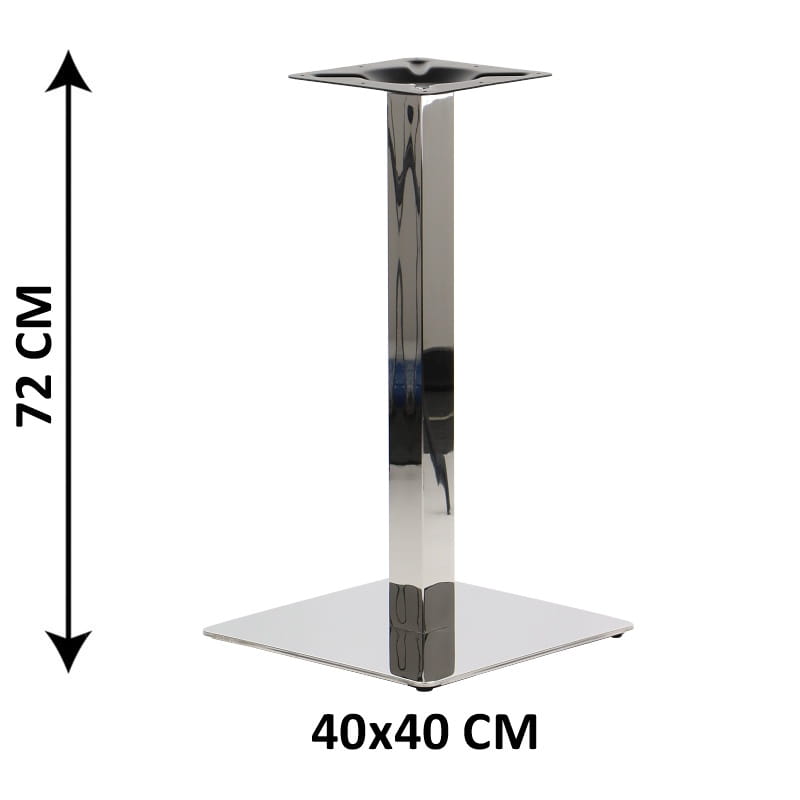

DIMENSIONS
DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.
MOUNTING PLATE

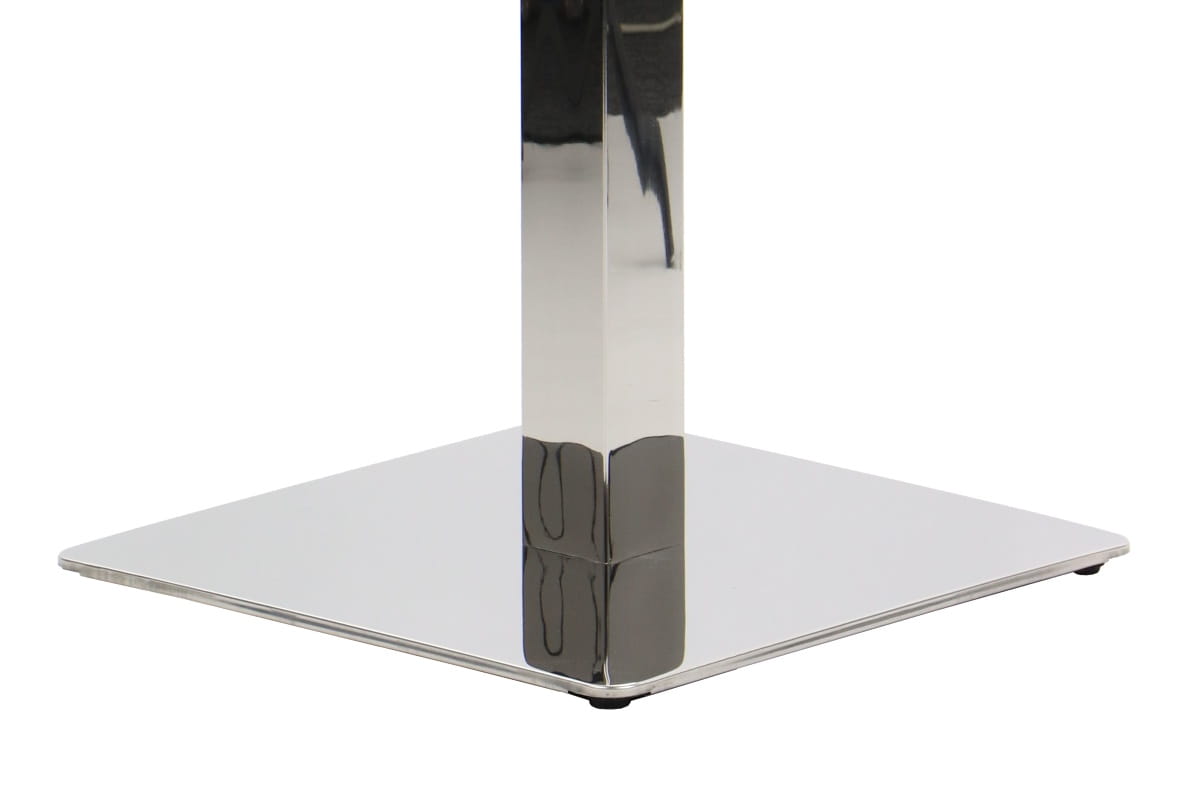

BOTTOM PLATE
Technical data
Warranty | product has a seller warranty. |
Height | from 68 to 74 |
Finish | polished stainless steel |
Bottom plate - shape | square |
Bottom plate - dimensions | about 40 cm |
